| TENS is a non- invasive electrical stimulation technique used to relieve pain. |
 |
| Tens (Pocket Model) |
Code: LCS 180-A |
|
LCS TENS is a pocket model, compact, lightweight, battery operated based on solid-state circuitry & user-friendly systems.
APPLICATION:
Relieves Pain very effectively in Arthritis, Neuralgia, Migraine, Spinal Disc, Surgical Trauma, Headache, Sciatica etc. |
 |
|
| SPECIFICATIONS |
| DIMENSION (L*H*D) |
133mm, 80mm, 120mm |
| WEIGHT |
0.6 Kg. Approx. |
| OPERATING VOLTAGE |
9V DC Single Battery (with Adapter) |
| ROOM TEMPERATURE |
10° to 40° C |
| MOISTURE |
10% to 80% |
| INTENSITY CONTROL |
Independent for CH-1 & CH-2 |
| FREQUENCY |
1~100 Hz common for CH-1 & CH-2 |
| AVAILABLE OUTPUT |
Two |
| MAXIMUM CURRENT |
Output load 50 mA with 1 K load |
|
|
|
|
|
| Tens MS (Pocket Model) |
Code: LCS 180-B |
|
LCS TENS/MS is a pocket model, compact, lightweight, battery operated based on solid-state circuitry & user-friendly systems.
APPLICATION:
Relieves Pain very effectively in Arthritis, Neuralgia, Migraine, Spinal Disc, Surgical Trauma, Headache, Sciatica etc. |
 |
|
| SPECIFICATIONS |
| DIMENSION (L*H*D) |
133mm, 80mm, 120mm |
| WEIGHT |
0.6 Kg. Approx. |
| OPERATING VOLTAGE |
9V DC Single Battery (with Adapter) |
| ROOM TEMPERATURE |
10° to 40° C |
| MOISTURE |
10% to 80% |
| INTENSITY CONTROL |
Independent for CH-1 & CH-2 |
| FREQUENCY |
1~100 Hz common for CH-1 & CH-2 |
| AVAILABLE OUTPUT |
Two |
| MAXIMUM CURRENT |
Output load 50 mA with 1 K load |
|
|
|
|
|

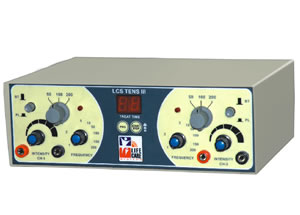

| Tens-III |
Code: LCS 182 |
|
LCS TENS-III is table model, portable, light weight, based on solid state circuitry & user-friendly systems.
APPLICATION:
Relieves Pain very effectively in Arthritis, Neuralgia, Migraine, Spinal Disc, Surgical Trauma, Headache, Sciatica etc. |
 |
|
| SPECIFICATIONS |
| DIMENSION (L*H*D) |
260mm, 100mm, 220mm |
| WEIGHT |
2.1 Kg. Approx. |
| OPERATING VOLTAGE |
220v 50Hz |
| ABSORPTION |
6-Watts Max. |
| FUSES |
200mA. |
| ROOM TEMPERATURE |
10° to 40° C |
| MOISTURE |
10% to 80% |
| TREATMENT MODE |
Plane / Burst |
| PULSE WIDTH |
50, 100, 200 Micro Seconds |
| INTENSITY CONTROL |
Independent for CH-1 & CH-2 (100V Peak to Peak) |
| FREQUENCY |
1~200Hz (Independent for CH-1 & CH-2) |
| AVAILABLE OUTPUT |
Two Channel |
| DIGITAL TIMER |
01 ~ 99 Minutes Programmable |
| PATIENT SAFETY |
Available |
|
|
|
|
|
| TENS-4 Channel |
Code: LCS 184DX |
|
LCS TENS 4Ch is a fully digital with digital treatment timer along with Soft Key Touch for Treatment mode Selector & auto mode Selector.
APPLICATION:
Relieves Pain very effectively in Arthiris, Neuralgia, Migraine, Spinal Disc, Surgical Trauma, Headache, Sciatica etc. |
 |
|
| SPECIFICATIONS |
| DIMENSION (L*H*D) |
15.50”X12”X10” |
| Weight with packing |
4.50Kgs. |
| OPERATING VOLTAGE |
220V AC 50Hz |
| FREQUENCY |
1, 2, 40, 80, 130 |
| MODE |
Cont, Burst, P.W.M. & Sweep |
| MAXIMUM OUTPUT POWER |
100V (Peak to Peak) |
| ROOM TEMPERATURE |
10°C to 40°C |
| MOISTURE |
10% to 80% |
| TIMER |
01 ~ 99MInutes |
|
|
|
|
|
|
|
 |
